• Worm Geared Motor
  • 웜기어드 모터
  •

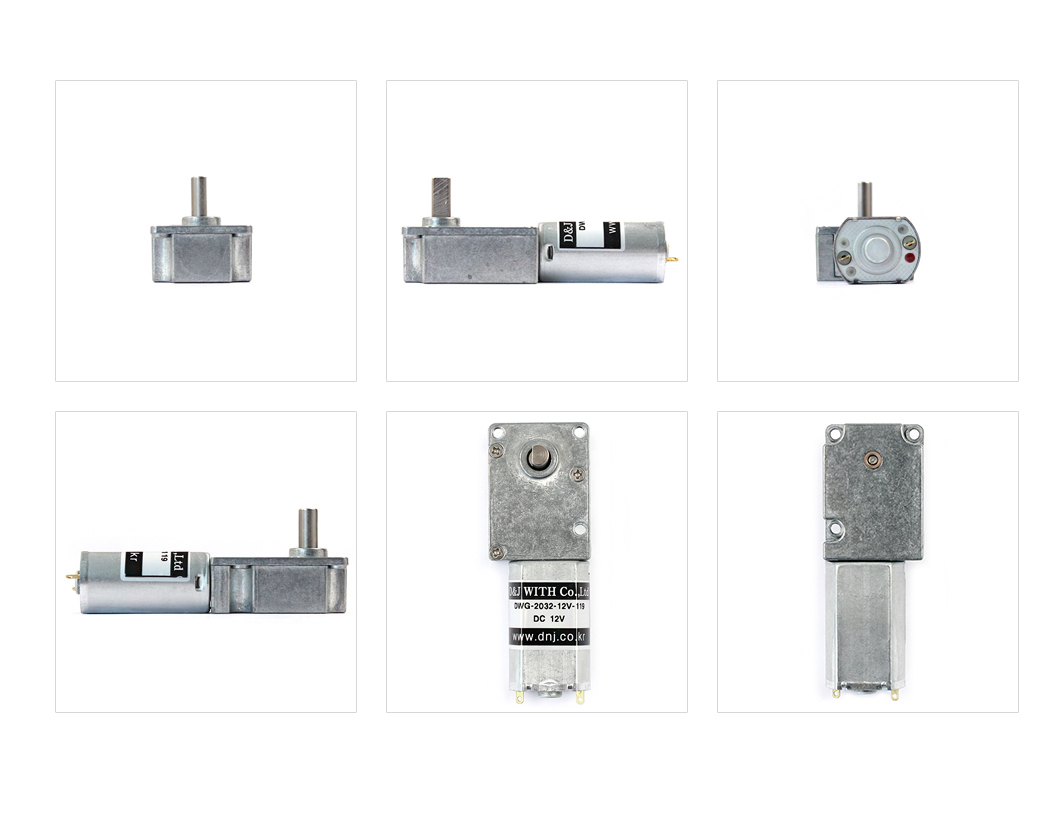

  • DWG-2032-12V-119 (Single Shaft)

    제품사양
    - Rated voltage: 12V
- Reduction of ratio: 1/119
- Rated torque: 0.8kgf-cm
- Rated speed: 39RPM
- No load speed: 52RPM
- Weight: 72g
- Install motor: DC 12V / 6,200RPM / 0.3W
- Related driver: DCS-30090, DCD-24V03A,DCS-30090-CN,DCD-24V03A-V2
  • 제품사양
  • - Rated voltage: 12V
- Reduction of ratio: 1/119
- Rated torque: 0.8kgf-cm
- Rated speed: 39RPM
- No load speed: 52RPM
- Weight: 72g
- Install motor: DC 12V / 6,200RPM / 0.3W
- Related driver: DCS-30090, DCD-24V03A,DCS-30090-CN,DCD-24V03A-V2
  • 제품상세

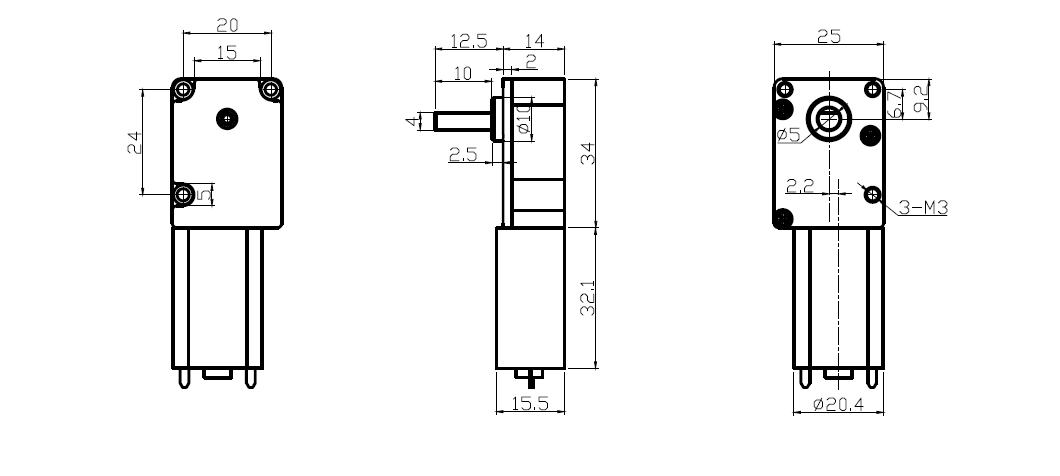

  • DWG-2032-12V-119
    정격 토크 Rated torque 0.8 (kgf-cm)
    정격 회전수 Rated speed 39 (RPM)
    정격 전류 Rated current 160~240 (mA)
    무부하 회전수 No load speed 52 (RPM)
    무부하 전류 No load current 60~120 (mA)
    정격 출력 Rated output 0.3 (W)
    회전방향 Direction of rotation 정,역회전 (CW/CCW)
    전압 조절 범위 Operating range DC6~13 (V)
    사용 온도 범위 Temperature range -10 ~ +60 (℃)
    적용모터 무부하 회전수 No load speed 6,200 (RPM)
    적용모터 무부하 전류 No load current 0.06 (A)
